Using two monitors can make it easier to work across different applications, but the stands that come with them can take up a lot of desk space.

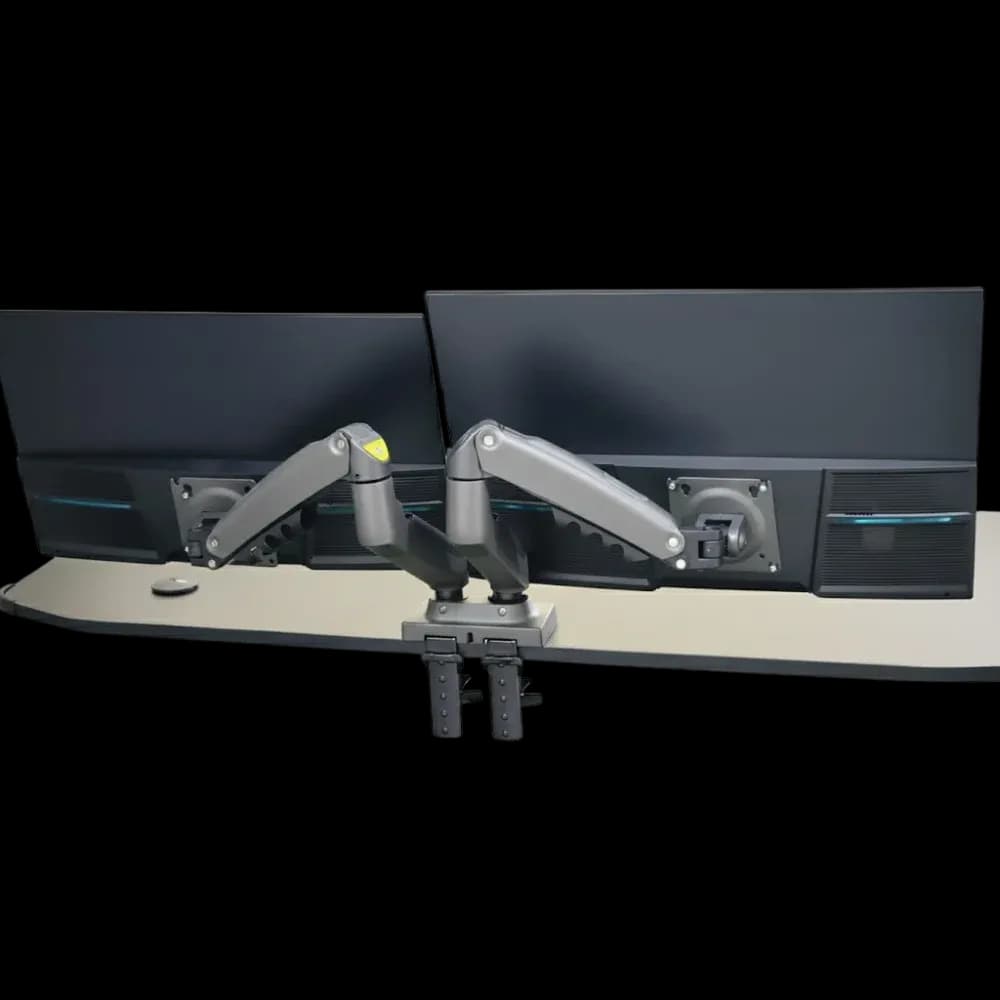

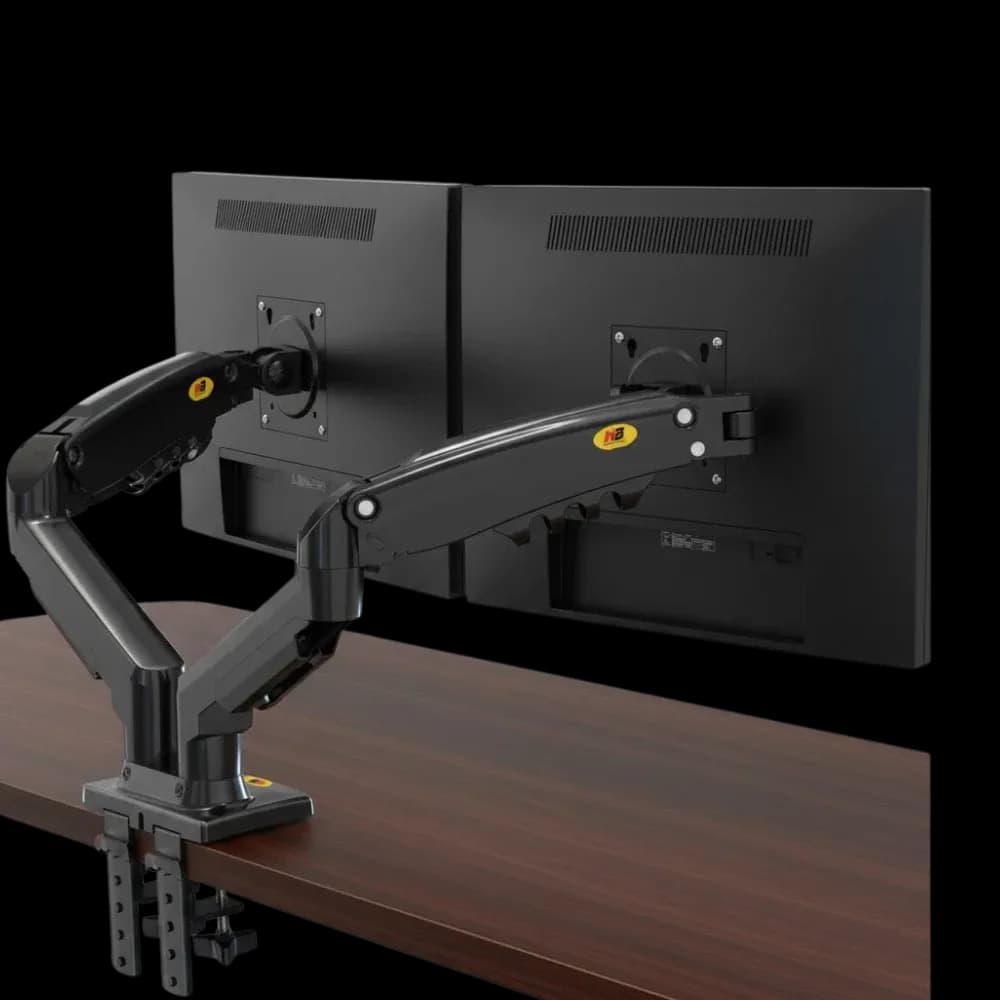

The North Bayou F160 Dual Arm Monitor Mount gives you another way to arrange a dual-monitor setup. Instead of keeping both monitors on their original stands, the F160 attaches them to two adjustable arms, freeing up space underneath and giving you more control over their position.
It supports two monitors from 17 to 27 inches, with a weight capacity of 2–9kg per arm.
Supports Two Monitors
The F160 is designed for two-monitor setups and supports standard 75×75mm and 100×100mm VESA mounting patterns.
Each arm can hold a monitor weighing up to 9kg, giving you flexibility when choosing displays. Before installation, check the actual weight of your monitors and confirm that their VESA mounting holes are compatible.
The arms can also be arranged in different configurations. Depending on your monitors and desk, you can position them side by side, angle them towards you or adjust their heights independently.
Gas-Spring Arms for Easier Adjustment
The F160 uses gas-spring arms to make repositioning the monitors easier. You can adjust the height, angle and position of each screen without having to repeatedly loosen and tighten the mount. The arms provide up to approximately 260mm of vertical adjustment and around 530mm of extension.
The mount also supports:
- +85° to -30° tilt
- ±90° swivel
- 360° rotation
- Landscape or portrait monitor orientation
This gives you plenty of adjustment when setting up two screens for work, gaming, research or content creation.
Free Up Desk Space
One of the most useful benefits of a dual monitor arm is the desk space it leaves available. Removing the original monitor stands creates more room for your keyboard, mouse, notebooks, speakers and other accessories. This can be particularly useful on smaller desks where two monitor bases take up a significant amount of the available surface.
The F160 also includes integrated cable management channels, allowing you to route power and display cables along the arms instead of leaving them hanging across the desk.
C-Clamp and Grommet Mounting
The F160 can be installed using either a C-clamp or grommet mounting system.
The product specifications list compatibility with desks between approximately 15mm and 90mm thick. Make sure your desk has enough clearance underneath and is strong enough to support the mount and your monitors before installation.
Both mounting options are useful depending on the type of desk you have. A C-clamp attaches to the rear edge, while the grommet option uses a suitable hole through the desk.
A Practical Dual-Monitor Upgrade
The North Bayou F160 Dual Arm Monitor Mount is a practical alternative to keeping two separate monitor stands on your desk.
With support for two monitors up to 27 inches and 9kg per arm, gas-spring adjustment, 75×75mm and 100×100mm VESA compatibility, multiple movement options, cable management and two mounting methods, it gives you more flexibility when arranging a dual-screen workstation.
Before ordering, check your monitor size, weight, VESA pattern and desk thickness to make sure the F160 is suitable for your setup.
